Product Description

NIA-410 Quadrotor Industrial Drone For Power Line Inspection

• NIA-410 Product Parameters
• Wheelbase: 1000mm
• Size: 800*800*500mm
• Rack weight: 3.5kg
• Rack + power weight: 6.5kg
• Maximum take-off weight: 16kg
• Effective load: 1-5kg
• Motor: 6215 180kv
• Paddle: 24x8.5 inch
• ESC: 80A FOC
• Supply voltage: 12S
• Power set weight: 0.76kg
• Recommended single-axis load: 4-5kg

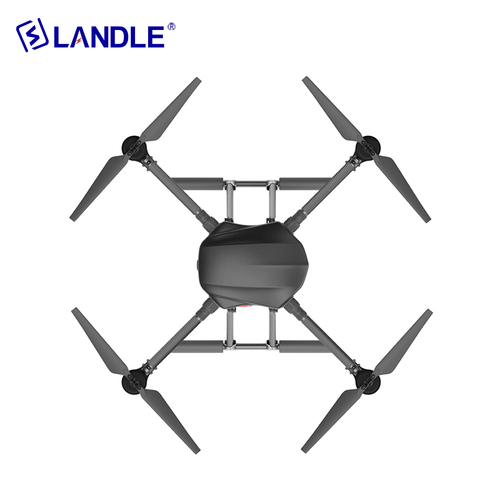

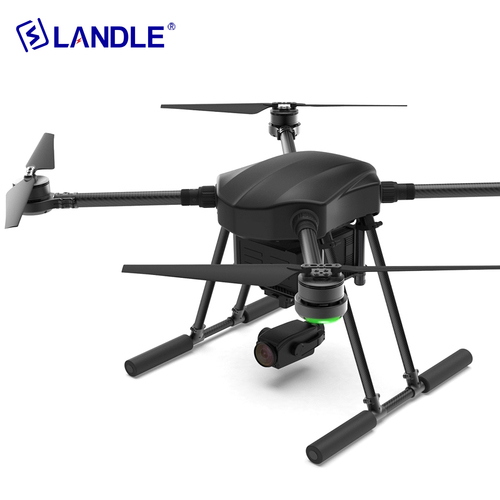

NIA-410 Industrial Aircraft Flight Platform

NIA-410 is a light-load flight platform specially designed for industrial applications. It adopts a modular design concept. The main components can be quickly disassembled and assembled, flexibly and multi-purpose, which is convenient for customized demand expansion. The whole machine is painted in matte black, which is more professional Calm.

Quick release arm design
The arm can be quickly disassembled for easy maintenance and replacement, and colleagues can greatly reduce the transportation volume.

Replaceable battery compartment

The battery compartment can be replaced according to the battery capacity to meet the needs of different sailing hours.

Replaceable quick release mount
The mounting equipment can be quickly replaced according to the application requirements of different scenarios, and the task load can be customized according to special requirements.

Customized industrial machine solutions

NIA-410 flight platform is a fully modular design, and each component can be customized according to customer requirements to meet different endurance and load requirements.

NIA-410 quad rotor industry drone is suitable for smart cities, police safety, road traffic, environmental protection and water conservancy, power line inspection, emergency rescue, oil pipeline inspection, surveying and other fields.

Applications:

• 3D Sand Table Modeling of Emergency Disaster
• Aerial emergency surveillance patrol
• Emergency communication network relay
• Power inspection
• Road patrol
• River conservancy inspection
