Product Description

Introduction:

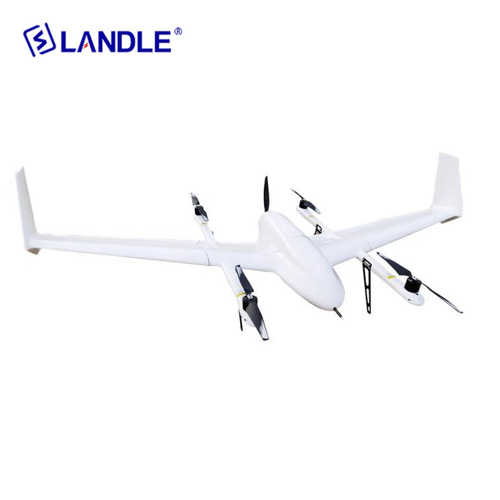

CT-05 fixed-wing unmanned aerial vehicle is a composite wing aircraft with a flying wing layout. It has the advantages of multi-rotor vertical take-off and landing, can take off in situ without a runway, and has long-endurance of fixed wing. The advantages of low noise and gliding are especially suitable for smart cities, police security, road traffic, environmental protection and water conservancy, emergency rescue, oil pipeline inspection, surveying and mapping and other fields.

Product parameter

Take-off preparation time: 30s
Long battery life: 91min
Aircraft wingspan: 1.8m
Recharge mileage: 120km
Takeoff weight: 6kg
Payload: 800g
HD photos: 12 million pixels
HD video: 4K
Cruising speed: 20m/s
Wind resistance: 12m/s

Core technical support

Core flight control technology

Dual redundant hardware architecture (dual IMU/magnetic compass/GPS)

Automotive-grade high-reliability device with IP67 protection

Open SDK for easy hardware expansion and software development

Overall pneumatic technology

Aerodynamic shape optimized by CFD digital wind tunnel calculation

Effectively reduce flight resistance and improve flight performance

Design of control law combined with pneumatic data

Integrated Avionics Technology

Integrated avionics system, effectively improve performance and reduce weight

Including flight control, data link, navigation, 4G and other system modules

Artificial intelligence technology

Automatic detection and identification of vehicle personnel and defects

Target locking and automatic tracking

Computational recognition based on deep convolutional neural network model

Security Emergency Technology

Systematic safety emergency measures

With high protection, voltage protection, posture protection

Supports one-click home return, automatic landing and other functions

Network communication technology

Support one station multi-machine, air relay and mesh networking function

Supports ground-based base station relay transmission communication in ultra-long distance scenarios

Image and data support 30 km transmission distance

Applications:

3D Sand Table Modeling of Emergency Disaster

Aerial emergency surveillance patrol

Emergency communication network relay

Power inspection

Road patrol

River conservancy inspection

Configuration:
